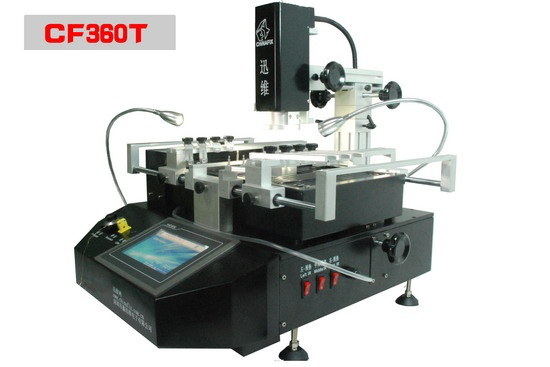

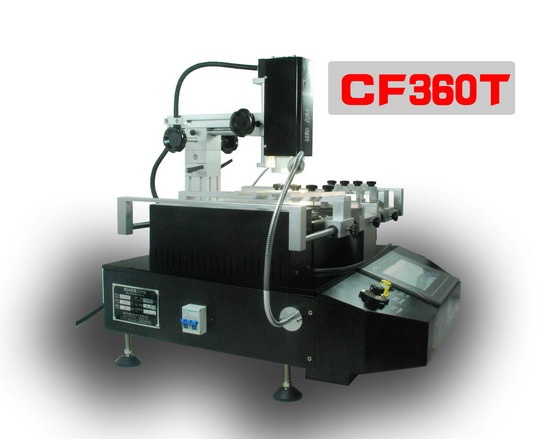

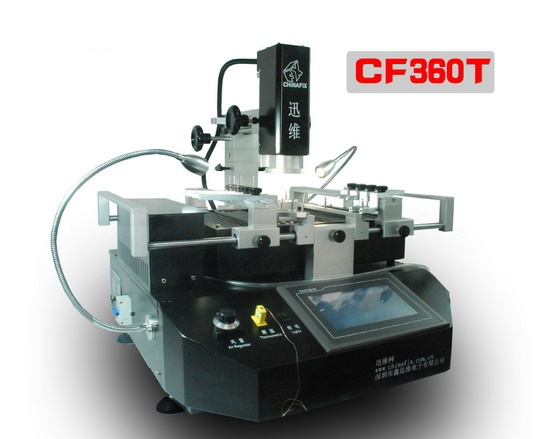

Review CF360T Intelligent Mute BGA Rework Station

CF360T Machine Parameter: Main Power:4000W Upper heating power: 800W Bottom heating power:

800W Power supply:　AC220V±0.1 50/60Hz Overall dimension: 760mm(L)*700mm(W)*600mm(H) Location mode: PCB holder can be adusted to X/Y direction at will , clip slot of V font , crocodile clip, hook of V font. Temperature Control: Closed-Cycle control with K Sensor, independent temperature control, precision:±1. PCB Size: W50*D50mm~ w440mm*D310mm Suitable Chip Size: 2*2mm-46*46mm Upper Nozzle Size: 28mm*28mm，35mm*35mm，38mm*38mm ，43mm*43mm ， 46mm*46mm Bottom Nozzle Size: 34mm*34mm，45mm*45mm Manner of Working: Drive Machine Weight: 36KG - See more

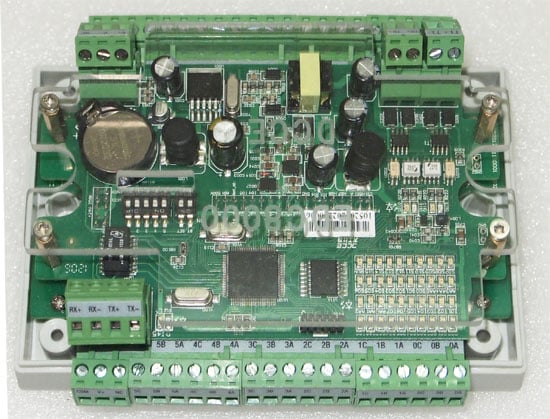

PLC controller is the inland famous brand DaGong, precise temperature-control, and can realize intelligent mute & automatic warning. The warranty of PLC temperature-controller is 2 years. - See more

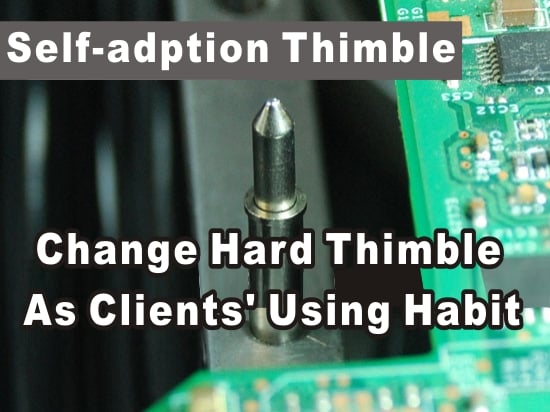

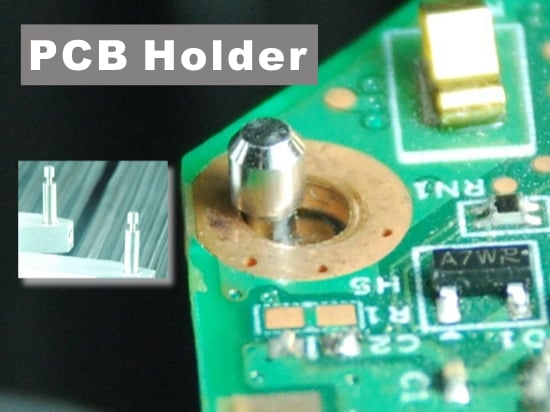

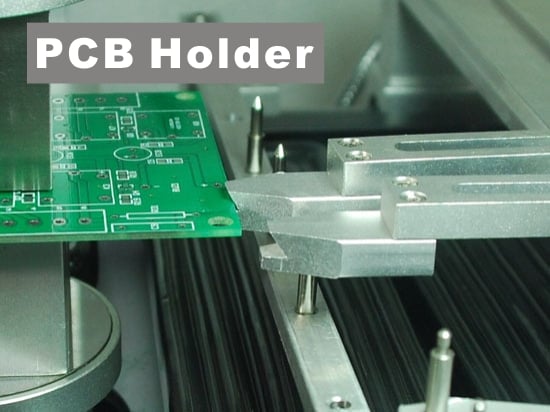

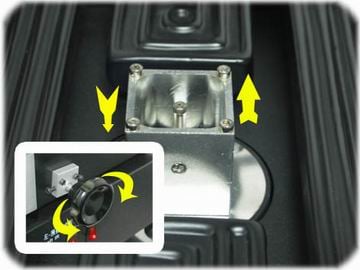

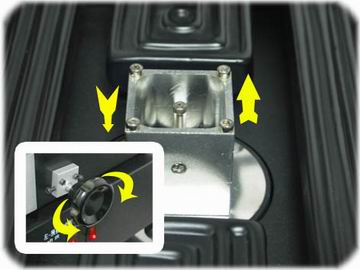

The design of inner notch can ensure to clip PCB and mounting hole of nobebook-board firmly, make PCB not easily to be shapeless when heating. Extra Strength upper heating support, removes more flexible. - See more
