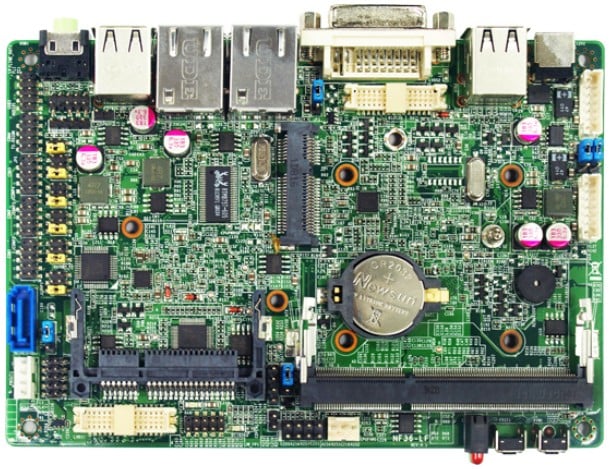

BIOS PC NF36-Series

NF36-Series
BF36AA08

1. INTEL® Cedar Trail-M Processor N2800/N2600+ NM10 Chipset
2. INTEL® Cedar Trail-D Processor D2550+ NM10 Chipset
3. Support 1 * DDR3 800MHz Single CH up to 2GB (N2600)
4. Support 1 * DDR3 1066MHz Single CH up to 4GB (N2800 & D2550)
5. Support DirectX 9 Graphics up to 640MHz
6. Support 1 * Serial ATAII (3Gb/s) Devices
7. Integrated Realtek ALC662 HD Audio CODEC with 4-CH
8. 1 * 18 bits Single & 1 * 24 bits Dual Channel LVDS header
9. Support DVI-I Output
10. Supports 2 * Realtek RT8111EVL Gigabit LAN
11. Support CPU Smart FAN
12. Compliance with ErP standard
13. 148 x 102mm 3.5” SBC Form Factor
