BIOS PC NF35-T56N / NF35-T40E

Discussion in 'BIOS/UEFI' started by technical, Sep 17, 2015.

  1. technical

    technical Moderator Staff Member

    Joined:
    Dec 13, 2013
    Messages:
    64,627
    Likes Received:
    4,729

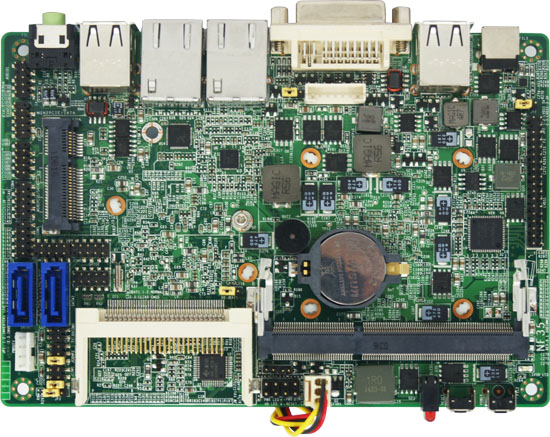

    NF35-T56N / NF35-T40E
    GF35A008

    [​IMG]
    1. AMD G-Series APU + Hudson M1 Chipset
    2. Support AMD eOntario (G-Series) Dual core APU
    3. Support DirectX 11 3D Graphics Acceleration
    4. Support 2 * Serial ATA3 (6Gb/s) Devices
    5. Support DDR3 800-1066 Single Channel 64-bit, up to 4GB
    6. Integrated Realtek ALC662 HD Audio CODEC
    7. 1 * 24 bit Dual Channel LVDS header
    8. Support DVI-I Output
    9. Supports 2 * Realtek RT8111EVL Gigabit LAN
    10. Support CPU Smart FAN
    11. Built-in Watchdog Timer Technology
    12. Compliance with ErP standard
    13. 148 x 102mm 3.5” SBC Form Factor


    Attached Files:

    #1 technical, Sep 17, 2015
