BIOS PC NC9B-HM67

Discussion in 'BIOS/UEFI' started by technical, Sep 17, 2015.

  1. technical

    technical Moderator Staff Member

    Joined:
    Dec 13, 2013
    Messages:
    64,627
    Likes Received:
    4,729

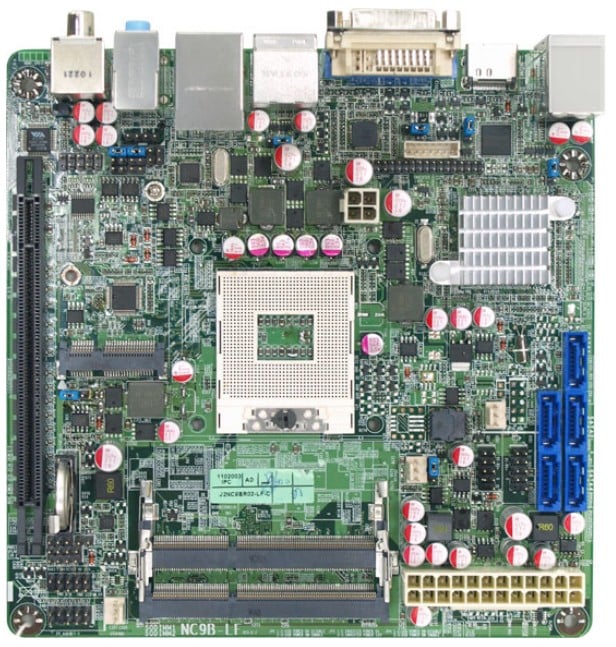

    NC9B-HM67

    [​IMG]
    1. Intel® HM67 Express Chipset
    2. Supports Intel Core™ i3, i5, i7 Mobile Processors
    3. 2 * SO-DIMM Dual Channel DDR3-1333/1066 up to 16GB
    4. Intel 82577LM Gigabit LAN
    5. PCI Express x16 2.0 Slot, PCI Express Mini Card Slot
    6. Integrated 24-bit Dual Channel LVDS
    7. 2-ports SATA 6Gb/s & 3-ports SATA 3Gb/s with RAID 0, 1, 5, 10 & JBOD Support
    8. HDMI, DVI-D, and VGA Video Outputs
    9. Built-in Watchdog Timer Technology
    10. Mini-ITX Form Factor (170mm x 170mm)
    11. Includes CPU Heatsink/Fan for <35W Processors
